2014 New design proximity access control keypad rfid reader

2014 New design proximity access control keypad rfid reader

Model No.︰D702A

Brand Name︰Dwell

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description

2014 New Design Access Control Keypad RFID Reader

Optional Model

D702A-26/34, (Black Color, 125khz EM ID wiegand 26/wiegand34 adjustable interface)

D702A-M26/M34, (Black Color,13.56Mhz mf wiegand26/wiegand 34 adjustable interface)


Wiegand 26bits/ Wiegand34bits Standard Format Data Output

Less than 0.2 second Response Speed

5-10cm Proximity Range

Ambient Temperature: -25º C to 75º C

Ambient Humidity: 10%-90%

Built-in Antenna

Built-in LED (Double Color LED)

Built-in Loud Speaker (Buzzer)

DC 9V-16V Working Voltage. Standard 12V, 70mA Working Current (if you need 5V,kindly contact Dwell Sales)

100 Meters Communication Distance

Real Time Data Transfer

With Water-Proof Function

Audiovisual indication: When a registered card is presented to the reader, the

LED flashes green and the beep sounds.


Package Detail


Package: 100pcs per carton. Carton Size: 43.5*56*23(cm)


Packing List:

1*RFID Reader


Installation Description

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.


Wire Connection

Red DC 9V to 16V

Black GND

Green D0

White D1

Yellow BEEP

Blue   LED

Grey  Wiegand 26/Wiegand 34

Orange  Door Bell

Grown   Door Bell



1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

Payment Terms︰ TT/Western union/Paypal/Escrow/Cash

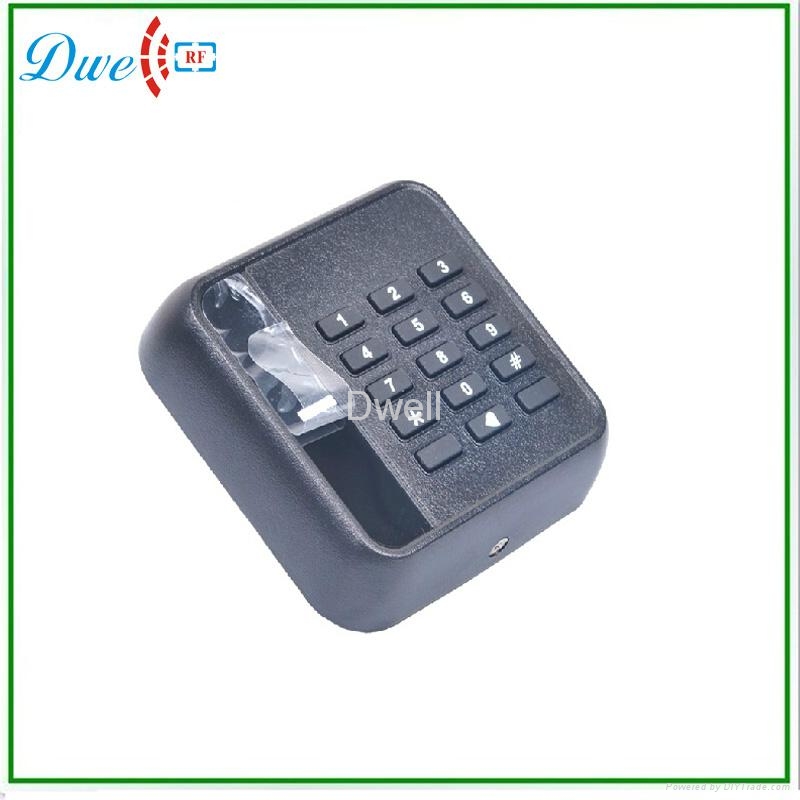

Product Image
